Mill Motor type Couplings Size AMG – 100 to AMG – 110

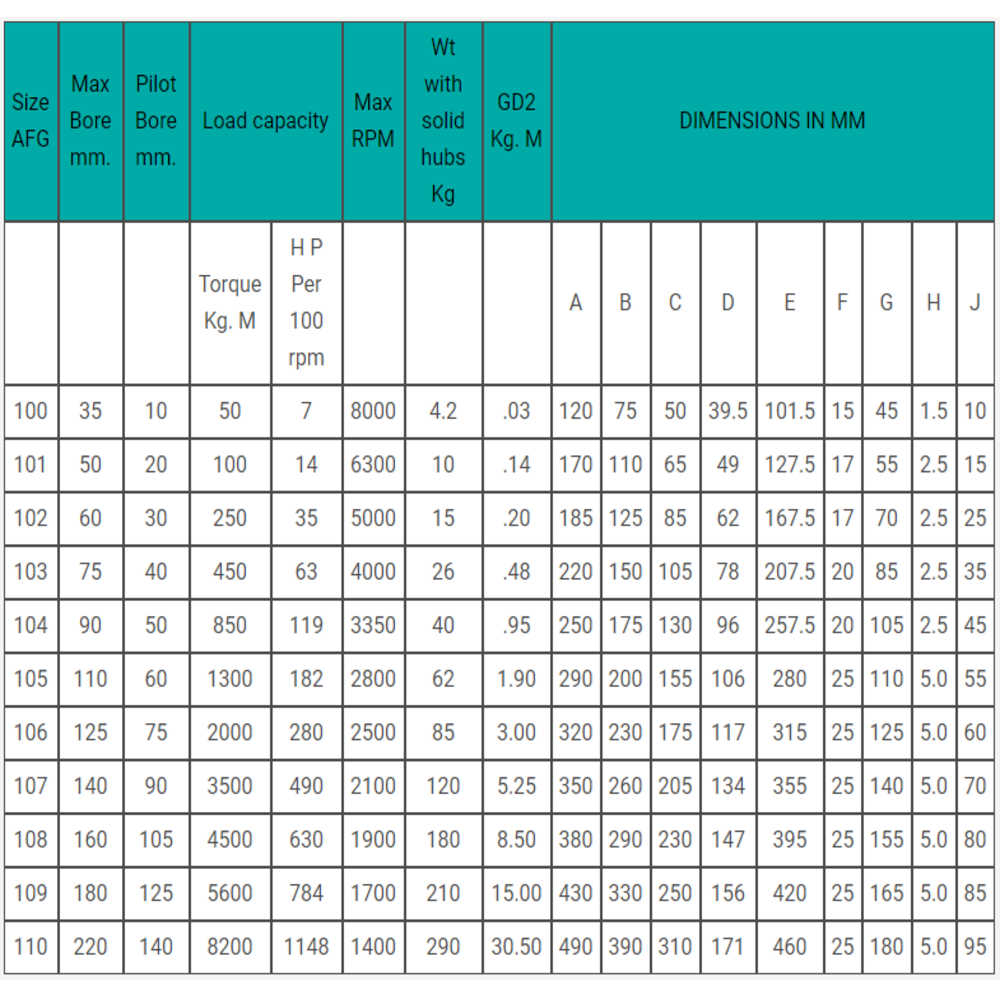

Size AFG	Max Bore mm.	Pilot Bore mm.	Load capacity		Max RPM	Wt with solid hubs Kg	GD2 Kg. M	DIMENSIONS IN MM
			Torque Kg. M	H P Per 100 rpm				A	B	C	D	E	F	G	H	J
100	35	10	50	7	8000	4.2	.03	120	75	50	39.5	101.5	15	45	1.5	10
101	50	20	100	14	6300	10	.14	170	110	65	49	127.5	17	55	2.5	15
102	60	30	250	35	5000	15	.20	185	125	85	62	167.5	17	70	2.5	25
103	75	40	450	63	4000	26	.48	220	150	105	78	207.5	20	85	2.5	35
104	90	50	850	119	3350	40	.95	250	175	130	96	257.5	20	105	2.5	45
105	110	60	1300	182	2800	62	1.90	290	200	155	106	280	25	110	5.0	55
106	125	75	2000	280	2500	85	3.00	320	230	175	117	315	25	125	5.0	60
107	140	90	3500	490	2100	120	5.25	350	260	205	134	355	25	140	5.0	70
108	160	105	4500	630	1900	180	8.50	380	290	230	147	395	25	155	5.0	80
109	180	125	5600	784	1700	210	15.00	430	330	250	156	420	25	165	5.0	85
110	220	140	8200	1148	1400	290	30.50	490	390	310	171	460	25	180	5.0	95

Size AFG	Max Bore mm.	Pilot Bore mm.	Load capacity		Max RPM	Wt with solid hubs Kg	GD2 Kg. M	DIMENSIONS IN MM
			Torque Kg. M	H P Per 100 rpm				A	B	C	D	E	F	G	H	J
100	35	10	50	7	8000	4.2	.03	120	75	50	39.5	101.5	15	45	1.5	10
101	50	20	100	14	6300	10	.14	170	110	65	49	127.5	17	55	2.5	15
102	60	30	250	35	5000	15	.20	185	125	85	62	167.5	17	70	2.5	25
103	75	40	450	63	4000	26	.48	220	150	105	78	207.5	20	85	2.5	35
104	90	50	850	119	3350	40	.95	250	175	130	96	257.5	20	105	2.5	45
105	110	60	1300	182	2800	62	1.90	290	200	155	106	280	25	110	5.0	55
106	125	75	2000	280	2500	85	3.00	320	230	175	117	315	25	125	5.0	60
107	140	90	3500	490	2100	120	5.25	350	260	205	134	355	25	140	5.0	70
108	160	105	4500	630	1900	180	8.50	380	290	230	147	395	25	155	5.0	80
109	180	125	5600	784	1700	210	15.00	430	330	250	156	420	25	165	5.0	85
110	220	140	8200	1148	1400	290	30.50	490	390	310	171	460	25	180	5.0	95
